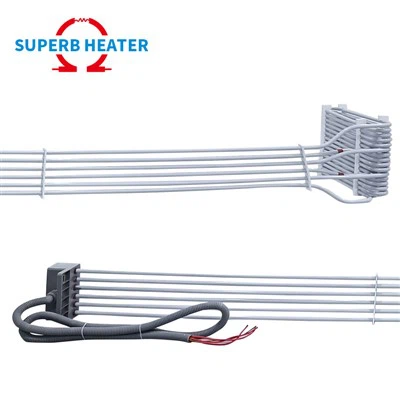

48v Industrial Acid Fluid Ptfe Coated Immersion Heater for Chemical Tanks

Production description

The 48V Industrial Acid Fluid PTFE Coated Immersion Heater for Chemical Tanks is designed to safely and reliably heat extremely corrosive acids, alkalis, plating baths, and other harsh chemical solutions in industrial tanks. This teflon immersion heater runs on low 48V voltage, which makes it safer to use in wet, dangerous places. It can also set the temperature very precisely up to 110°C. The heating element has a strong stainless steel core that is completely covered in high-quality virgin PTFE fluoropolymer. This makes it very resistant to chemicals and keeps it from getting dirty or breaking down. Our full PTFE coating protects the entire surface from permeation and corrosion, unlike regular teflon tape for water heaters that simply seals joints. Low watt density (≤1.5W/cm²) gets rid of hotspots, makes things last longer, and lets them run all the time in tough chemical processing setups. Many people who use electroplating, acid etching, and wastewater treatment say that their equipment lasts for more than four years without needing any maintenance, even in tough conditions. This is much better than generic options.
The design includes a flexible L-shaped form that makes sure that heat is distributed evenly across the bottom tank, even when the liquid levels change. Teflon heat shrink tubing seals the cold ends to make them more resistant to moisture and keep the electrical integrity. The PTFE layer comes from China's best providers of heat- and corrosion-resistant resins. It stays uniform and strong, just like high-end uses like teflon pillow for heat press materials, but it is better for being submerged in corrosive fluids.

Product details

Some products drawings that you could need

Why choose us

Professional testing equipments and standard testing process

Every unit undergoes multi-stage inspection before shipment. Key equipment includes:

Hi-Pot / Withstand Voltage Tester: Applies 2000V AC to verify dielectric strength and prevent breakdown or shock risks.

Insulation Resistance Tester: Confirms ≥500 MΩ resistance at high temperature for long-term stability against moisture ingress.

Leakage Current Tester: Simulates real-world conditions to ensure leakage stays below 0.5mA for operator safety.

Ground Resistance Tester: Verifies grounding path ≤0.1 Ω to divert fault currents safely.

Coating Thickness Gauge: Ultrasonic measurement ensures uniform PTFE layer (≥0.5mm) for optimal corrosion protection and heat transfer.

High-Temperature Aging Chamber: Simulates 1000+ hours of rated operation to validate no power degradation or material breakdown.

Thermal Imaging Camera: Detects even temperature distribution and confirms no hotspots during full-load testing.

We are manufacturer

As a direct factory manufacturer, we put quality materials ahead of cost-cutting. For example, virgin PTFE from top Chinese resin suppliers is better at resisting heat and corrosion than recycled PTFE. Our low surface load design and strict quality standards make our products last longer. Customers in harsh acid environments can use them for 4 to 6 years without having to replace them, and we offer an 18-month quality warranty that can be extended. Our prices are 15–25% lower than our competitors' for the same quality, and our durability is better than most other options on the market at the same price. This teflon immersion heater works better than many generic ones in chemical tanks because it has a covering with no pinholes and a strong seal.

Our Partner

Shiping and packing

FAQ

Q1: Do you allow changes to be made?
A: Yes, you may fully customize the voltage, power, size, shape, and accessories. Send us your specifications for a rapid quote and drawing.
Q2: How many items do you need to place an order?
A: One piece for samples or special orders, and ten pieces for bulk standard models.
Q3: How long does it take you to respond to questions and requests for help?
A: Questions about sales or technical issues are answered within four hours. Updates on orders are sent out every day. Support after the sale is available within 24 hours, including help with problems and replacements.
Q4: What kind of warranty and service do you offer after the sale?
A: There is an 18-month warranty against flaws in the production process. We offer free technical help and quick delivery of spare parts or replacements.
Q5: Are you a factory or a business that buys and sells?
A: Direct factory-quality-first strategy with in-house production for the greatest prices, speed, and control.
This 48V industrial acid fluid PTFE-coated immersion heater for chemical tanks is perfect for modern chemical processes because it combines the proven performance of a teflon immersion heater with low-voltage safety. Get in touch with us for personalized solutions.
