Your Professional L-shaped Combined PTFE Heater Manufacturer!
Superb Heater Group Corrosion-Resistant Heater Factory is a manufacturing enterprise with years of experience in the research, design, and production of electric heating products. Our company has always been highly praised and trusted by customers for our excellent product quality and reliable after-sales service. As its business continues to expand, our products are now distributed across the entire country and exported overseas.
Since its founding, Superb Heater has adhered to a guiding principle of scientific and standardized management. We have established a customer-centric management system in areas such as product development, marketing, and quality assurance, laying a solid foundation for delivering high-quality products and services.
-
![Custom Fluoroethylene Frame PTFE Tank Immersion Heater]()
Custom Fluoroethylene Frame PTFE Tank Immersion HeaterProduction description This is an industrial 380V 6kW L Shape Electric Tubular Immersion PTFE Heater Element for heating corrosive liquids. The Industrial 380V 6kW L Shape Electric Tubular...view more -
![Custom Electric Tubular PTFE Coated Corrosion Resistant Immersion Heater for Acid Liquid Tank]()
Custom Electric Tubular PTFE Coated Corrosion Resistant I...Production description This is an industrial 380V 6kW L Shape Electric Tubular Immersion PTFE Heater Element for heating corrosive liquids. The Industrial 380V 6kW L Shape Electric Tubular...view more -
![PTFE Acid-base Solution Immersion Tubular Heater]()
PTFE Acid-base Solution Immersion Tubular HeaterProduction description This is an industrial 380V 6kW L Shape Electric Tubular Immersion PTFE Heater Element for heating corrosive liquids. The Industrial 380V 6kW L Shape Electric Tubular...view more -
![220V PTFE Coated Immersion Heater Electric Tubular Heating Element for Corrosive Liquid]()
220V PTFE Coated Immersion Heater Electric Tubular Heatin...Production description This is an industrial 380V 6kW L Shape Electric Tubular Immersion PTFE Heater Element for heating corrosive liquids. The Industrial 380V 6kW L Shape Electric Tubular...view more -

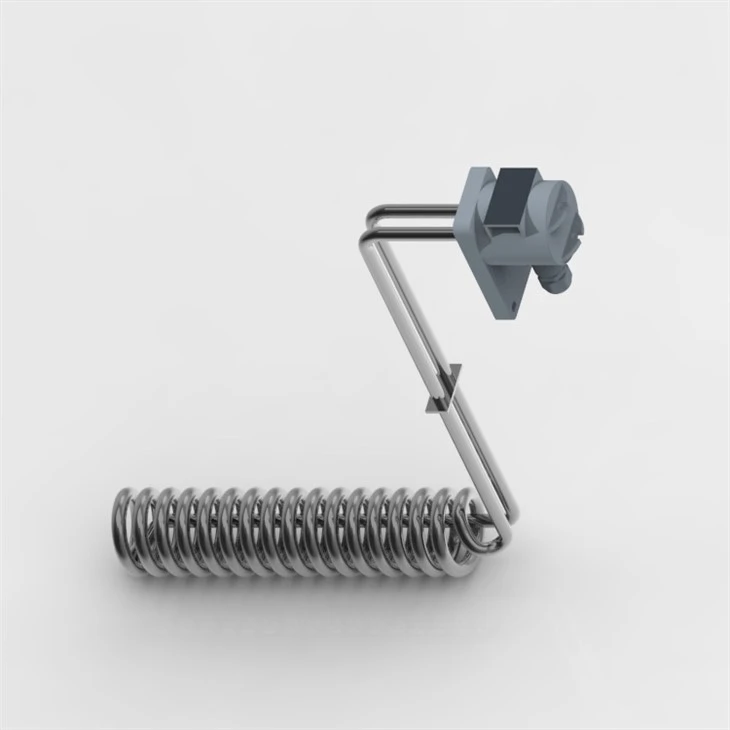

![2000W Industrial PTFE Immersion Heater for Acid Liquid]()
2000W Industrial PTFE Immersion Heater for Acid LiquidProduction description This is an industrial 380V 6kW L Shape Electric Tubular Immersion PTFE Heater Element for heating corrosive liquids. The Industrial 380V 6kW L Shape Electric Tubular...view more
why choose us
ISO 9001 Quality Management System-Certified
Flexible scheduling,Efficient production,Strong supervision, strictly controlling every step from raw materials to delivery
Specialized Customization
With over 15 years of R&D and manufacturing experience in Corrosion-Resistant Heater, we offer tailored solutions based on specific customer requirements.
Quality Assurance
Raw materials undergo rigorous inspection; every production process is subject to 100% in-process checking, and a full final inspection is implemented before shipment, ensuring consistent and reliable quality.
Customer-Centric
Our dedicated sales and technical teams provide professional consultation and comprehensive pre-sales & after-sales support to meet every customer need.
Advantages of L-shaped Combined PTFE Heater
Excellent Corrosion Resistance
High-purity PTFE coating provides outstanding resistance to strong acids, alkalis and corrosive chemical solutions.
Large Heating Surface Area
Combined tube structure increases effective heating area for faster and more uniform heat transfer.
Low Watt Density Design
Lower surface load helps reduce crystallization, overheating and dry firing damage.
Space-Saving L-Shaped Structure
Side-entry L-shaped design maximizes tank space utilization and simplifies installation.
Stable Temperature Performance
Uniform heating improves process stability and production consistency in industrial applications.
Long Service Life
Premium heating elements and optimized PTFE protection help extend operational lifespan.
Safe & Reliable Operation
Excellent insulation performance reduces leakage and short-circuit risks in corrosive environments.
Easy Installation & Maintenance
Side mounting structure allows convenient installation, replacement and daily maintenance.
Electroplating Industry
Used for:
Nickel plating tanks
Chrome plating tanks
Zinc plating systems
Precious metal plating solutions
Provides stable temperature for plating quality consistency.
PCB Industry
Suitable for:
Etching solution heating
Chemical cleaning tanks
PCB surface treatment systems
Chemical Processing Industry
Used for heating corrosive industrial chemicals requiring stable temperature control.
Metal Surface Treatment
Widely used in:
Acid pickling systems
Degreasing tanks
Surface activation processes
Wastewater Treatment Systems
Suitable for industrial wastewater heating and temperature stabilization systems.
Semiconductor Industry
Used in high-purity chemical liquid heating applications requiring strong corrosion resistance.
Components of L-shaped Combined PTFE Heater
Heating Element Core (Internal)
Metal Tube/Sheath: The inner core is typically made of stainless steel (SUS316L or SUS304).
Heating Coil: Inside the metal tube, a heating alloy—often Nichrome (80% Nickel, 20% Chromium)—is used to convert electrical energy into heat.
Insulation: The internal coil is typically encased in magnesium oxide for durability, safety, and heat transfer.
PTFE/Teflon External Sheath
Fluoropolymer Coating: The entire heating core is covered in a thick PTFE, PFA, or FEP tube, which makes it resistant to almost all acids, alkalis, and corrosive chemicals.
Terminal Enclosure (Head)
Vapor-Tight Enclosure: A non-corrosive, flame-retardant polypropylene head protects the electrical connections from acidic fumes.
Liquid-Tight Conduit: A flexible PVC or thermoplastic conduit (usually around 3 feet) covers the lead wires for protection.
Safety and Protection Features
Over-Temperature Protection: A built-in thermal fuse (often T1 or T2) or a thermal protector (PT100/bi-metal switch) prevents overheating, which is crucial because PTFE can be damaged if exposed to open air or excessive temperatures.
Grounding: Internal metal elements are grounded to ensure safety.
Customisable product parameters
|
Parameter |
Standard / Customizable Options |
Notes / Customization Proof |
|
Power (kW) |
1.0 – 30.0 kW |
Customized from 500W to 30kW based on tank volume and heat-up time |
|
Voltage |
120V – 600V, single or 3-phase |
Flexible for global use; recent projects include 480V/3-phase for US chemical plants |
|
Frame/Structure |
Fluoroethylene (PTFE) frame, grid, fence, or custom |
Heavy-wall PTFE/PFA wetted surfaces; custom frames for PVDF, PFA, quartz tanks |
|
Heating Element |
Stainless steel core with thick PTFE coating |
Low watt density for longevity; spiral or tubular designs available |
|
Max Operating Temp |
Up to 200°C (392°F) |
Inert to most aggressive chemistries |
|
Length / Dimensions |
Custom (e.g., 7x5" to 19x14" frames or larger) |
Tailored risers, cold zones, and shapes; e.g., oversized for 10,000L tanks |
|
Cable/Lead Length |
2m standard, up to 10m or more |
Vapor-tight heads; custom conduits for hazardous areas |
|
Accessories |
Thermal protection (P1 device), resettable fuse |
Over-temperature cutoff standard |
Packaging and Shipping
Each heating element is individually wrapped in protective foam and placed in a sturdy cardboard box with shock-absorbing padding, clearly labeled. For bulk orders, we use wooden pallets or export-grade wooden crates to ensure safe transport.
