Solar cell production involves a sequence of wet chemical processes-texturing silicon wafers in hot alkaline solutions, cleaning in acids, and etching. Each step demands precise temperature control and absolute freedom from metallic contamination, which can kill cell efficiency. PTFE heat exchanger solar cell manufacturing solutions have become essential for heating and cooling these aggressive chemical baths while maintaining the highest purity levels required for photovoltaic (PV) cells.
Overview of Solar Wet Processes Requiring Thermal Management
Crystalline silicon solar cell manufacturing includes several wet chemical steps, each with specific temperature and purity requirements.
Alkaline Texturing (KOH or NaOH)
Monocrystalline silicon wafers are textured in hot potassium hydroxide (KOH) or sodium hydroxide (NaOH) solutions at approximately 80–90 °C. This process creates a random pyramid structure that reduces surface reflection and improves light trapping. The bath must be maintained within a narrow temperature window (±0.5 °C to ±1.0 °C) to ensure uniform pyramid formation. Heating is required to reach and sustain this temperature.
Acid Etching (HF‑HNO₃)
For multicrystalline wafers or for damage removal, an acidic mixture of hydrofluoric acid (HF) and nitric acid (HNO₃) is used. This reaction is highly exothermic. The bath temperature tends to rise rapidly and must be cooled to stay within a range of 5–15 °C (depending on the formulation). Precise cooling prevents uncontrolled etching rates and maintains wafer uniformity.
Cleaning and Rinsing Steps
Between etching and diffusion, wafers are cleaned in dilute HF, SC‑1 (NH₄OH + H₂O₂), or SC‑2 (HCl + H₂O₂) solutions. Some cleaning steps are performed at elevated temperatures (up to 80 °C) to enhance particle removal. Others operate at ambient or slightly elevated temperatures. All cleaning baths must be free of metal contamination.
The Role of PTFE Heat Exchangers in Each Process
PTFE (polytetrafluoroethylene) heat exchangers are immersion-type devices that transfer heat directly to or from the chemical bath. They consist of tubes or coils made from pure PTFE, often with a metal heating core (e.g., a titanium or stainless steel electric heater) encased entirely in PTFE, or with a PTFE shell-and-tube design for use with an external heating/cooling fluid.
Heating Texturing Baths
In KOH or NaOH texturing lines, PTFE heat exchangers provide efficient, uniform heating. The exchanger is submerged in the alkaline bath, and a heating medium (steam, hot water, or an internal electric heater) warms the PTFE surface, which then transfers heat to the solution. PTFE's non-stick surface prevents the buildup of reaction byproducts (e.g., silicates) that could insulate a metal heater. More importantly, no metal ions leach into the bath.
Process specifications strictly limit dissolved metals such as iron, copper, and nickel to parts-per-billion levels. Even trace iron can act as a recombination center in the silicon bulk, reducing minority carrier lifetime and cell efficiency by several percentage points. A PTFE exchanger eliminates this risk entirely because the heat transfer surface is pure fluoropolymer.
Cooling Exothermic Etching Baths
HF‑HNO₃ etching generates significant heat. To maintain bath temperature between 5 °C and 15 °C, cooling is required. PTFE heat exchangers are connected to a chilled water or glycol system. The cold fluid circulates through the PTFE tubes, absorbing heat from the acid mixture. PTFE is resistant to HF and HNO₃ even at high concentrations, unlike stainless steel (which corrodes rapidly) or most metals. Only PTFE, PFA (perfluoroalkoxy), or high‑purity quartz can withstand these aggressive etchants. Quartz is brittle and prone to thermal shock, while PTFE offers durability and design flexibility.
Purity Assurance in Cleaning Baths
Cleaning steps (e.g., SC‑1 at 70–80 °C) are critical for removing trace metals from the wafer surface before high‑temperature diffusion. Any metal introduced by the heat exchanger would recontaminate the wafers. PTFE heat exchangers provide a completely metal‑free heat transfer surface, ensuring that the cleaning bath remains as pure as the chemistry itself.
Why PTFE Is Preferred Over Other Materials
| Material | Compatibility with KOH (80–90 °C) | Compatibility with HF‑HNO₃ | Metal Ion Leaching | Suitability |
|---|---|---|---|---|
| Stainless steel (316L) | Moderate (corrosion possible) | Poor (rapid attack) | Yes (Fe, Cr, Ni) | Not suitable |
| Titanium | Good | Poor (HF attacks) | Yes (Ti ions) | Limited |
| Quartz (fused silica) | Good | Good | None (pure SiO₂) | Good but fragile |
| PTFE / PFA | Excellent | Excellent | None | Excellent |
PTFE offers the unique combination of:
Chemical resistance to both strong alkalis and strong acids across the full pH range
Thermal stability up to 260 °C continuous, well above the 80–90 °C texturing temperature and the 5–15 °C etching range
Non-stick surface that resists fouling from reaction byproducts (e.g., amorphous silica from texturing)
Zero metal ion leaching, meeting semiconductor‑grade purity requirements

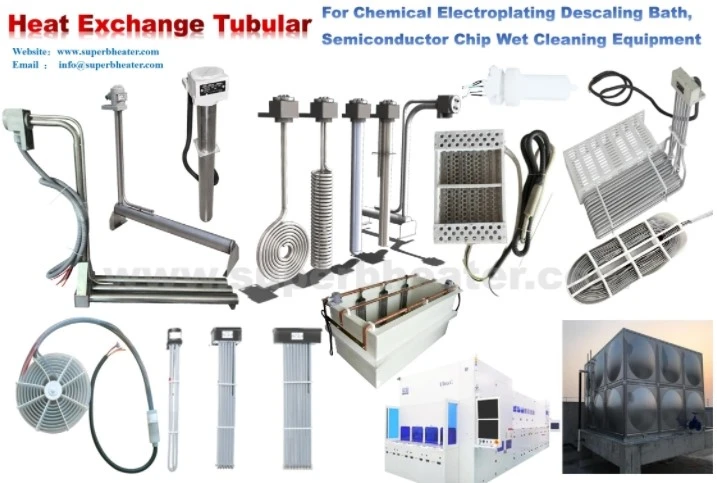

Design Configurations for Solar Manufacturing
Two common PTFE heat exchanger designs are used in solar wet benches.
Immersion Coils
A coiled or serpentine PTFE tube (often with a supporting metal frame also PTFE‑coated) is submerged directly into the bath. Hot water or steam (for heating) or chilled water (for cooling) flows through the inside of the tube. The large surface area of the coil provides efficient heat transfer. Multiple coils can be arranged around the bath perimeter or along the tank walls.
PTFE‑Jacketed Electric Heaters
An electric heating element (typically made of titanium or Incoloy) is completely encapsulated in a PTFE sheath. The heater is inserted into the bath through a port in the tank wall. The PTFE jacket protects the bath from metal contact while allowing efficient heat transfer. Such heaters are often used for smaller texturing baths or as auxiliary heating units.
Shell‑and‑Tube Exchangers (External Circulation)
In larger production lines, bath fluid is pumped through an external PTFE shell‑and‑tube heat exchanger. The corrosive fluid flows through PTFE tubes, while a utility fluid (steam, hot water, or chilled water) flows around the tubes inside a metal shell lined with PTFE or PFA. This design allows higher heat transfer rates and easier maintenance but requires a recirculation pump.
Key Benefits of PTFE Heat Exchangers in Solar Cell Manufacturing
The following advantages make PTFE heat exchangers indispensable in modern PV wet processing:
Contamination‑free heating and cooling: No metal ions are introduced into texturing, etching, or cleaning baths. This directly improves minority carrier lifetime and cell conversion efficiency.
Superior chemical resistance: PTFE withstands concentrated KOH (30–50%) at 90 °C, as well as HF‑HNO₃ mixtures, without degradation.
Uniform temperature distribution: The flexible PTFE coil design allows placement along tank walls, promoting bath circulation and eliminating localized hot or cold spots.
Fouling resistance: Silicates and other reaction products do not adhere strongly to PTFE, reducing maintenance frequency compared to metal or quartz surfaces.
Long service life: PTFE heat exchangers typically last 5–10 years in continuous solar production environments, whereas stainless steel would fail in weeks.
Safety: No risk of bath contamination from corrosion products, and no risk of brittle fracture as with quartz.
Process Integration and Control
In a typical solar cell wet bench, PTFE heat exchangers are integrated with a temperature control system. A PTFE‑coated thermocouple or RTD sensor measures the bath temperature. A PLC or PID controller modulates the flow of heating or cooling fluid (or the power to an electric heater) to maintain setpoint.
For exothermic etching baths, a fast‑acting cooling control loop is essential. The controller must anticipate temperature rise and increase chilled water flow through the PTFE exchanger. Some systems use a cascade control strategy with a secondary temperature sensor on the exchanger outlet.
Maintenance Considerations
While PTFE is highly durable, periodic inspection is recommended:
Check for mechanical damage (cuts or abrasion) on PTFE tubes, especially near tank edges or agitators.
Remove any accumulated silicate scale from texturing baths using a mild acid rinse (dilute HCl). PTFE allows easy cleaning because scale does not bond strongly.
Verify that the internal heating or cooling fluid is not leaking. Leaks are detectable by a drop in system pressure or by conductivity changes in the bath.
Conclusion
PTFE heat exchangers enable high‑purity thermal management in solar cell production. They provide reliable heating of KOH/NaOH texturing baths at 80–90 °C and precise cooling of exothermic HF‑HNO₃ etching baths, all while maintaining a completely metal‑free heat transfer surface. The combination of chemical resistance, non‑fouling properties, and zero metal ion leaching directly contributes to higher solar cell efficiencies by preserving minority carrier lifetime. Advanced PV manufacturing relies on contamination‑free process equipment, and PTFE heat exchanger solar cell manufacturing solutions have become a standard component in wet benches for texturing, cleaning, and etching. As the industry pushes toward higher efficiencies and larger wafer formats, the role of PTFE heat exchangers in maintaining ultrapure, precisely controlled wet processes will only grow.
